Product Description

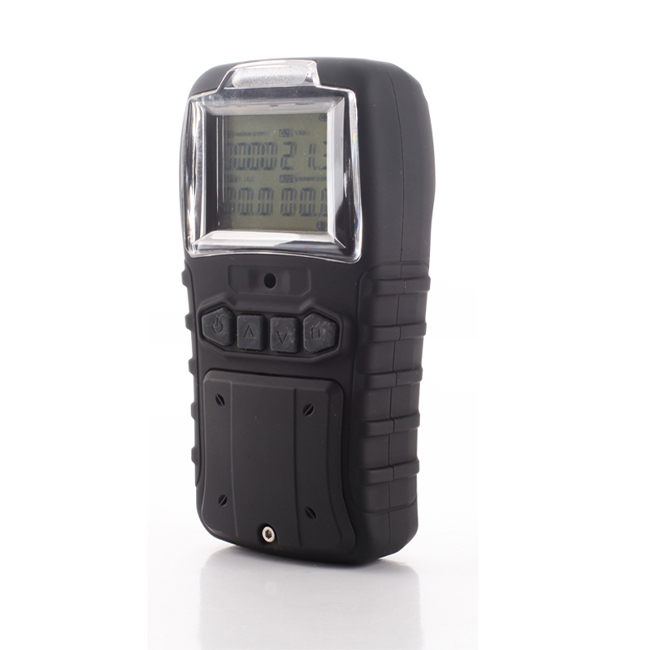

K60-V Multi-Gas Detector (PID)
The K60-IV and K60-V series are compact full-featured gas detectors for detecting up to four and five types of gases respectively, typically oxygen, combustible gas, hydrogen sulfide, carbon monoxide and VOCs (K60-V). The key features include an easy-to-operate design, a water-resistant case and high sensitivity sensors.
Key Features
1) Lightweight (less than 300 g) with compact design, easy to operate
2) Excellent built-in vibration alarm, ideal for environments with high ambient noises
3) 90 dB audible vibration alarm
4) Sturdy, protective, concussion-proof shockproof design for normal working in harsh environments
5) Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage
6) The rechargeable lithium battery ensures an over 10 hours continuously operation (equipped with a recharger)
7) Intuitive simple-to-operate buttons
8) User interface with a built-in pump
9) 2+2 digits LCD display showing gas concentration and corresponding gas types in real time.
10) Full-featured self-test for sensors, lithium battery, circuit integrity and acousto-optic vibration alarm function.
11) Accessories: an operator manual, a calibration hose, a recharger and conversion plug.
TECHNICAL APECIFICATIONS:
| Dimension | 133 L × 70 W × 36 H mm |
| Weight | Approx. 300 g |
| Sampling | Pump, diffusion |
| Working Temperature | -10°C ~ +44°C |
| Relative Humidity | 15% ~ 90% RH (non-condensing) |
| Power | 3.7 V rechargeable lithium battery, continuously work for over 10 hours (equipped with charger) |
| Sensor Service time | One year for combustible gas sensors; two years for oxygen sensors, toxic gas sensors and PID sensors. |
| Display | LCD display |
| Alarm Mode | Acousto optic alarm |
| Explosion-proof Grade | Ex ib IIC T3 |
| IP grade | IP 67 |
| GAS TYPE | DETECTION RANGE | RESOLUTION | RESPONSE TIME |
| O2 | 0 - 30% Vol | 0.1% Vol | T90 ≤ 15 s |
| LEL | 0 - 100% LEL | 0.1% LEL | T90 ≤ 5 s |
| CO | 0 – 1999 ppm | 1 ppm | T90 ≤ 25 s |
| H2S | 0 – 200 ppm | 0.1 ppm | T90 ≤ 30 s |
PID (VOCs < 10.6 eV) | 0 - 1999.9 ppm | 0.1 ppm | T90 ≤ 20 s |
＞＞＞List of Commonly Detected Gas Types
No. | Gas detection | Detection range | Detection accuracy | T90 Response time | Resolution | Alarm set point (low/high) |
1 | PH3 | 0 – 5 ppm | ±5% (F.S) | ≤ 25 s | 0.01 ppm | 0.3 ppm/5 ppm |
2 | O2 | 0-30%Vol | ±5% (F.S) | ≤ 15 s | 0.10% Vol | 18.0%Vol/23.0%Vol |
3 | EX | 0-100% LEL | ±5% (F.S) | ≤ 15 s | 1% LEL | 25.0%/50.0% LEL |
4 | CO | 0 - 2000 ppm | ±5% (F.S) | ≤ 25 s | 1 ppm | 50 ppm/100 ppm |
5 | H2S | 0 -100 ppm | ±5% (F.S) | ≤ 30 s | 1 ppm | 10 ppm/20 ppm |
8 | SO2 | 0 - 100 ppm | ±5% (F.S) | ≤ 30 s | 0.1 ppm | 2 ppm /10 ppm |
9 | CI2 | 0 - 20 ppm | ±5% (F.S) | ≤ 30 s | 0.1 ppm | 1 ppm /10 ppm |
10 | NH3 | 0 – 200 ppm | ±5% (F.S) | ≤ 50 s | 1 ppm | 25 ppm /50 ppm |
6 | NO2 | 0 - 20 ppm | ±5% (F.S) | ≤ 25 s | 0.1 ppm | 3 ppm/10 ppm |
7 | NO | 0 - 250 ppm | ±5% (F.S) | ≤ 60 s | 1 ppm | 25 ppm/50 ppm |
11 | H2 | 0 - 1000 ppm | ±5% (F.S) | ≤ 60 s | 1 ppm | 50 ppm /100 ppm |
12 | HCN | 0 - 50 ppm | ±5% (F.S) | ≤ 200 s | 0.1 ppm | 10 ppm /20 ppm |
13 | HCL | 0 - 20 ppm | ±5% (F.S) | ≤ 60 s | 0.1 ppm | 5 ppm /10 ppm |
14 | CH4 | 0 - 5% Vol | ±5% (F.S) | ≤ 60 s | 0.1% Vol | customized |
15 | CO2 | 0 - 5% Vol (0-5000ppm) | ±5% (F.S) | ≤ 60 s | 0.01% Vol (1 ppm) | customized |
16 | PID(VOCs) | 1-1999 ppm | ±5% (F.S) | ≤ 20 s | 0.1 ppm | customized |
17 | C3H8 | 0 - 5%Vol | ±5% (F.S) | ≤ 60s | 0.01% Vol | customize |
18 | O3 | 0 – 5 ppm | ±5% (F.S) | ≤ 30s | 0.02 ppm | 1ppm/2 ppm |
19 | SF6 | 0 – 1000 ppm | ±5% (F.S) | ≤ 60s | 0.2ppm | 25ppm/50 ppm |
20 | HF | 0 – 10 ppm | ±5% (F.S) | ≤ 60s | 0.1ppm | 3ppm/10 ppm |
Note: Customized alarm setting points are also available.
