K60B Series Portable Gas Detector

Share to:
The K60B series gas detector is a full featured device.It adopts the international first-class electrochemical sensor.
  • K60B
  • KELISAIKE
Quantity:

Product Description

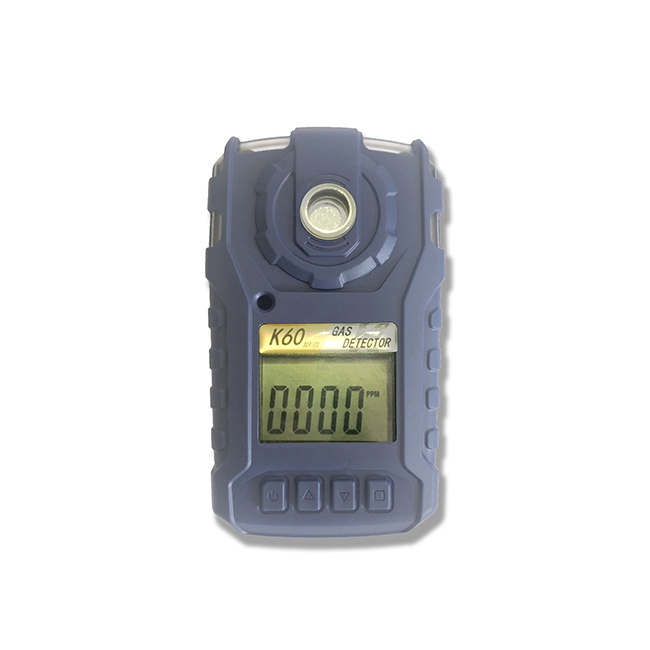

K60B Series Portable Gas Detector

The K60B series gas detector is a full featured device.It adopts the international first-class electrochemical sensor. large-screen liquid crystal display, three-level bright, red flashing visible alarm and power supply undervoltage alarm function. The specified gas concentration in the surrounding environment can be continuously monitored. Once the gas concentration reaches the preset value of the alarm, an audible, optical and vibration alarm will be issued.

K60B series gas detection and alarm device is suitable for explosion-proof, toxic gas leakage, underground pipeline or mine work, etc., which can effectively ensure the safety of workers and the production equipment is not damaged.



  • KEY FEATURES:

1)High sensitivity world famous imported sensors.

2)Light weight and small size design(less than 120g), easy to operate.

3)Bright, red flashing visible alarm.

4)90dB audible vibration alarm.

5)Excellent built in vibration alert for use in areas of high ambient noise.

6)Strong, protective, concussion-proof design for normal working in harsh environments.

7)3.7V rechargeable lithium battery, continuously work for 2 years(equipped with charger)

8)2+2 digits LCD real time display gas concentration

9)Certifications: CE, CMS, Ex, MA

10)Network wireless(Optional): Bluetooth, 4G, NB. Connect to the mobile app and upload data


  • TECHNICAL APECIFICATIONS:



Dimension98 L x 57W x 32 H mm
Weight100 g
SamplingDiffusion
Working Temperature-20° C ~ +55° C
Relative Humidity15% ~ 90%  RH (non-condensing)
Power3 V Lithium battery
Service Life2 years
DisplayLCD display
Pressure86 ~ 106 kPa
Alarm ModeAcousto optic alarm with vibration
Explosion-proof GradeEx ib IIC T3
IP gradeIP67



>>>List of Commonly Detected Gas Types

No.

Gas detection

Detection range

Detection accuracy

T90 Response time

Resolution

Alarm set point (low/high)

1

PH3

0 – 5 ppm

±5% (F.S)

≤ 25 s

0.01 ppm

0.3 ppm/5 ppm

2

O2

0-30%Vol

±5% (F.S)

≤ 15 s

0.10% Vol

18.0%Vol/23.0%Vol

3

EX

0-100% LEL

±5% (F.S)

≤ 15 s

1% LEL

25.0%/50.0% LEL

4

CO

0 - 2000 ppm

±5% (F.S)

≤ 25 s

1 ppm

50 ppm/100 ppm

5

H2S

0 -100 ppm

±5% (F.S)

≤ 30 s

1 ppm

10 ppm/20 ppm

8

SO2

0 - 100 ppm

±5% (F.S)

≤ 30 s

0.1 ppm

2 ppm /10 ppm

9

CI2

0 - 20 ppm

±5% (F.S)

≤ 30 s

0.1 ppm

1 ppm /10 ppm

10

NH3

0 – 200 ppm

±5% (F.S)

≤ 50 s

1 ppm

25 ppm /50 ppm

6

NO2

0 - 20 ppm

±5% (F.S)

≤ 25 s

0.1 ppm

3 ppm/10 ppm

7

NO

0 - 250 ppm

±5% (F.S)

≤ 60 s

1 ppm

25 ppm/50 ppm

11

H2

0 - 1000 ppm

±5% (F.S)

≤ 60 s

1 ppm

50 ppm /100 ppm

12

HCN

0 - 50 ppm

±5% (F.S)

≤ 200 s

0.1 ppm

10 ppm /20 ppm

13

HCL

0 - 20 ppm

±5% (F.S)

≤ 60 s

0.1 ppm

5 ppm /10 ppm

14

CH4

0 - 5% Vol

±5% (F.S)

≤ 60 s

0.1% Vol

customized

15

CO2

0 - 5% Vol   (0-5000ppm)

±5% (F.S)

≤ 60 s

0.01% Vol (1 ppm)

customized

16

PID(VOCs)

1-1999 ppm

±5% (F.S)

≤ 20 s

0.1 ppm

customized

17

C3H8

0 - 5%Vol

±5% (F.S)

≤ 60s

0.01% Vol

customize

18

O3

0 – 5 ppm

±5% (F.S)

≤ 30s

0.02 ppm

1ppm/2 ppm

19

SF6

0 – 1000 ppm

±5% (F.S)

≤ 60s

0.2ppm

25ppm/50 ppm

20

HF

0 – 10 ppm

±5% (F.S)

≤ 60s

0.1ppm

3ppm/10 ppm

Note: Customized alarm setting points are also available.
